You've got the sketch, the fabric idea, and a measuring tape that's already been used to check the same number several times. What you don't yet have is the file a factory can cut, sew, comment on, and reproduce without asking you to explain every line.

That gap is where many people stall. Making your own clothing patterns isn't just about drawing a pleasing silhouette. It's about converting body measurements and design decisions into a controlled system, then proving that system works through a test garment before you commit to production. The practical workflow is measurement, block, digitization, toile, correction, and grading, with records preserved at each stage.

A pattern should connect body measurements, ease, shape, seam allowances, grainlines, construction order, and material use. That principle has deep roots. During the nineteenth century, paper patterns, home sewing machines, and mail-order catalogs helped move pattern making from individualized professional work into the home, while magazines helped spread simplified drafting methods. By the early twentieth century, home-economics programs were teaching pattern use as a way to improve fit and fabric efficiency (Cornell's history of home sewing).

The slowdowns are predictable. Makers draft before they control the measurements, alter several areas at once, skip the toile, or approve one successful sample and assume the other sizes will behave. A factory-ready block demands less improvisation and more diagnosis.

Table of Contents

From Sketch to Factory File in Five Stages

Start by treating the garment as a chain of decisions rather than a single drawing. The sketch describes the intended appearance, but it doesn't tell a factory where the grainline runs, how much ease belongs at the bust, which pieces are cut on the fold, or how the sleeve head should join the armhole.

Stage one, measure with intent

Record the body in a natural standing posture, using consistent tape positions and a measurement table you can reuse. Separate body measurements from garment ease. If you combine them too early, you won't know whether extra room comes from the wearer's body, movement requirements, or the design itself.

Your measurement sheet should include the circumferences and lengths that control the garment, along with notes about posture, asymmetry, and the intended fabric. A rounded upper back, one lower shoulder, or a fuller bust can affect the draft even when the main circumference numbers look correct.

Stage two, draft a base block

Choose or draft a block that matches the garment category. For a bodice, establish the center front and back, bust level, waistline, shoulder, neckline, armhole, grainline, and balance marks before changing the style. A block is a controlled starting surface, not the final fashion shape.

Use slash-and-spread to add volume or overlap sections to remove it. Keep the center lines and grainlines aligned throughout. If those references drift, the garment may appear to have a fitting problem when the actual issue is that the pattern has twisted.

Stage three, digitize and document

Transfer the approved paper work into an editable digital file. Add piece names, cut quantities, size information, notches, seam allowances, grainlines, and construction notes. A factory needs a file that another person can interpret, not a photograph of a draft with unexplained marks.

A useful reference at this point is this fashion sketch to factory-ready spec sheet workflow, especially if your initial concept began as a loose sketch rather than a complete technical drawing. If the file needs to print at a particular scale or page size, a practical guide for resizing PDFs with PDFWix can help prevent a print setting from changing the pattern.

Stage four, validate with a toile

Make the test garment in a material that behaves like the production fabric. Mark center lines and correction lines directly on the toile, inspect the front, side, and back, and classify defects by location and direction. Change one related area at a time, then retest.

Stage five, grade and release

Only grade after the base size has passed fit review. Record finished-garment measurements and tolerances, check the smallest and largest planned sizes, and preserve the approved pattern version alongside the tech pack and construction details.

Practical rule: A factory file is finished only when another person can use it without recovering your missing decisions.

Building a Reliable Measurement Set Before You Draft

The first draft is rarely the true beginning. The beginning is a measurement set collected under controlled conditions. Stand naturally, don't pull the shoulders back, hold the tape level, and use the same reference points every time. If someone else will wear the garment, have another person take the back and shoulder measurements instead of twisting to reach them yourself.

Separate the measurement value, measurement location, and measurement note. For example, a bust circumference is useful only when you know where the tape sat and whether the subject was wearing the intended undergarment. A back length can change with posture, so record whether the person stood relaxed or was deliberately aligned for a more upright silhouette.

The numbers that drive the draft

A small set of dependable relationships can generate several pattern sections. Historical drafting systems made this logic explicit. A nineteenth-century patented scale used one-quarter of the bust circumference as its basis and covered bust sizes from 23 to 48 inches (the U.S. patent record). The point isn't to copy an old sizing system. It's to understand that a circumference can act as a control measurement for widths, while lengths and proportions establish the vertical structure.

For a first bodice block, organize your table around:

  • Circumferences: bust or chest, waist, and hip where relevant.
  • Vertical lengths: shoulder to bust level, shoulder to waist, and intended garment length.
  • Horizontal controls: shoulder width, across-chest, across-back, and neckline references.
  • Shape indicators: bust prominence, upper-back posture, shoulder slope, and visible asymmetry.
  • Design inputs: intended ease, closure, fabric stretch, and whether the garment is fitted, semi-fitted, or loose.

Don't hide ease inside the body measurements. Write it as a separate column or design note. A close woven bodice, a relaxed shirt, and a stretch top may use the same body data while requiring very different finished dimensions.

Read posture instead of forcing symmetry

A mathematically tidy body isn't the same thing as a real body. If one shoulder sits lower, or the upper back rounds more than a standard block assumes, mirror-image drafting can create a garment that looks balanced on paper but pulls on the wearer.

Photographs can help, but they should support measurement rather than replace it. Take front, side, and back reference photos in a consistent stance, then annotate what you see. Note where the neck sits in relation to the shoulder seam, whether the waistline tilts, and whether the subject habitually carries the head or pelvis forward.

Measure the person who will wear the garment, not the idealized figure your block expects.

Before drawing, compare every recorded value with the previous measurement session if one exists. Resolve surprising changes before drafting. A changed tape position can look like a body change, and a changed posture can look like a length problem. This small audit prevents you from compensating for inconsistent data with increasingly complicated pattern alterations.

Drafting Your First Bodice Block From Measurements

Lay out the bodice as a set of landmarks. Use a large sheet of pattern paper, a sharp pencil, a clear ruler, and a French curve for the neckline and armhole. Draw lightly until the relationships are checked, then reinforce the final lines with a fine marker.

Begin with the center back or center front, depending on your preferred method, and draw the vertical reference line. Add the finished bodice length from shoulder to waist, then mark the bust level using the recorded shoulder-to-bust measurement. From that line, establish the quarter-bust width according to your drafting method, while keeping the intended ease visible as a separate addition rather than an unexplained correction.

A worked drafting sequence

Suppose your measurement table contains a bust circumference, a waist circumference, a shoulder-to-bust length, a shoulder-to-waist length, and a shoulder width. The exact values aren't the lesson. The repeatable order is.

First, draw the center line and place the bust and waist levels. Next, plot the bust width and waist width from the same reference edge. If the block is drafted with a dart, reserve the dart intake deliberately at the waist or another controlled location. Do not just draw a narrower waistline and hope the side seam will absorb the difference.

From the upper reference points, place the neckline width and depth, then connect the shoulder while accounting for shoulder slope. Use the armhole depth derived from your chosen drafting method and the recorded body proportions. Shape the armhole with a French curve, checking that it passes smoothly through the shoulder and side-seam landmarks without creating a sharp corner.

Now add the design-independent markings:

  • Center front and center back, including fold status where relevant.
  • Bust level, and bust apex if the block requires it.
  • Grainline, parallel to the intended fabric direction.
  • Notches, including locations that help match front, back, and sleeve.
  • Seam allowances, added after the net pattern shape is checked.
  • Piece labels, cut quantity, size, and version.

Walk adjoining seams together before cutting. The front side seam should correspond to the back side seam, and the sleeve cap should be checked against the armhole according to the intended ease and construction. A block with beautiful curves can still fail if adjoining seam lengths don't match.

The block now becomes a platform for style development. Move a dart into a neckline, armhole, or princess seam with slash-and-spread or overlap, then redraw the style line while preserving the grainline and center references. The same logic extends to skirts, trousers, and sleeves, though each category introduces its own balance and shaping problems.

For a broader look at software choices and digital pattern workflows, compare the considerations in this guide to the best clothing design software in 2026. The software matters less than whether it preserves editable geometry, annotations, versions, and production markings.

If a correction changes the grainline or center line, stop and true the pattern before making another alteration.

Digitizing the Block With Genpire's Workflow

Hand drafting remains valuable because it makes the relationship between measurements and shape visible. The difficulty begins when the approved draft has to become a coordinated set of visuals, specifications, construction instructions, and production files.

A digital workflow should preserve the source decisions rather than flatten them into a final image. Start with the paper block, a clean scan, or a sketch paired with the measurement set. Prompt-based creation can help turn a rough reference into a multi-view concept, but the generated silhouette still needs technical review. Check neckline depth, seam placement, closure position, hem balance, sleeve attachment, and the fabric assumptions behind the drawing.

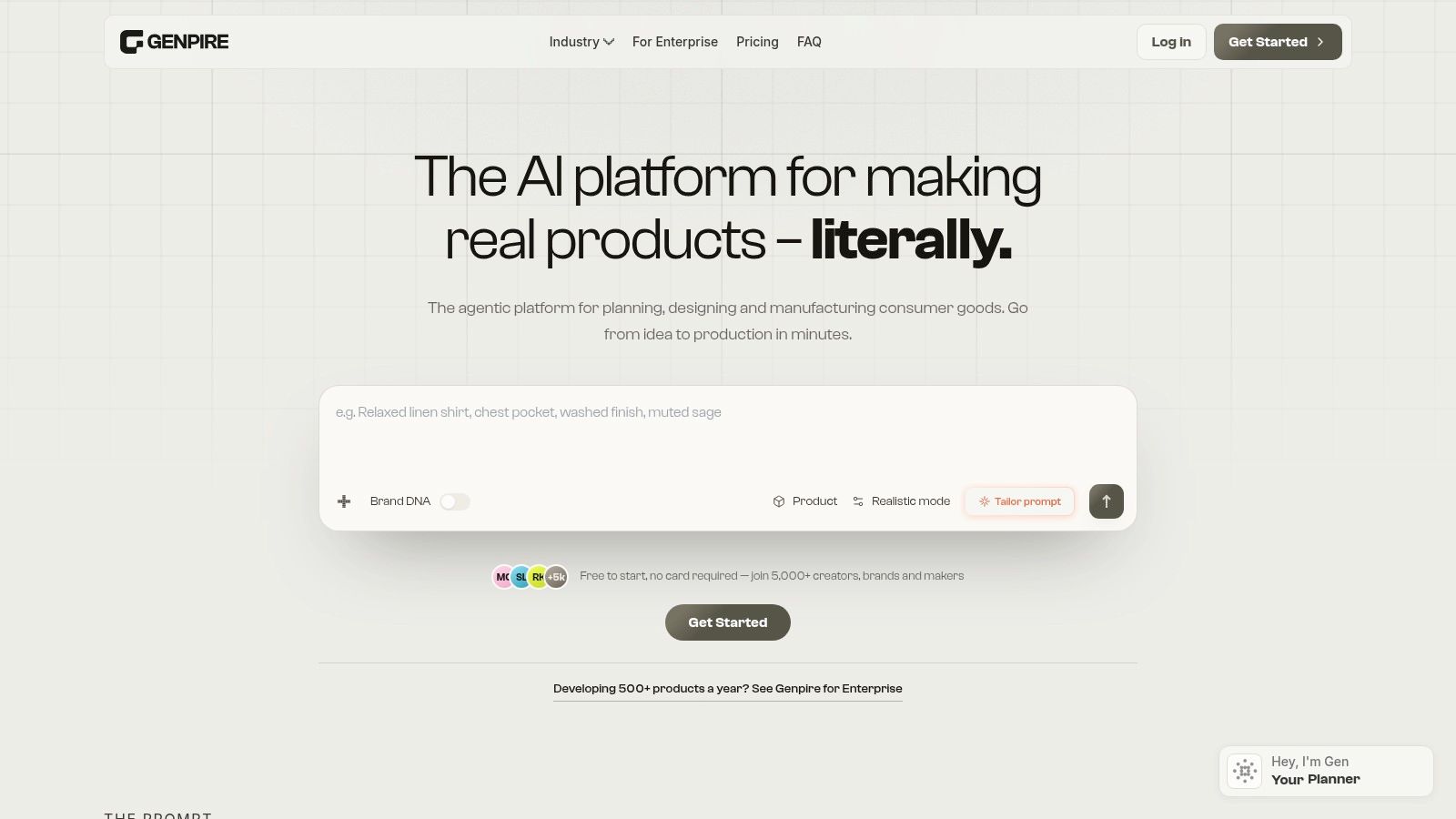

Screenshot from https://www.genpire.com

Keep aesthetic decisions separate from fit decisions

A moodboard and palette can define the visual direction, while the block controls fit and construction. Those layers should inform each other without being confused. A softer drape may require more ease or a different seam treatment, but changing the color shouldn't alter the measurement logic.

An AI Editor can support controlled revisions to silhouette, materials, color, and details when the maker specifies what must remain fixed. The useful distinction is between style edits and engineering edits. “Make the hem fuller” is a style request. “Preserve the center-front length, closure position, and grainline while adding volume at the side seam” is a technical instruction.

Build the tech pack around the pattern

The tech pack should capture more than a flat sketch. Include the component breakdown, construction sequence, seam and finishing instructions, labels, closures, fabric notes, measurement points, and comments tied to particular views or pieces. A supplier should be able to understand what belongs to the garment and what belongs to the communication layer.

A structured workspace becomes most useful when it keeps the pattern, technical sketch, and construction details connected. Unified comments reduce the risk that a correction appears in one email thread but not in the file used for sampling. Version names should identify the stage and fit status, such as draft, toile one, corrected toile, or approved base.

Exports need to match the people downstream:

  • SVG preserves editable vector information for digital pattern and design workflows.
  • PDF supports printable pattern sheets and shareable documentation.
  • Excel provides a practical format for measurement charts, specifications, tolerances, and grading rules.

Supplier collaboration works better when the factory can view the current file, leave comments in context, and see which version is active. Free view-only access can be useful for external partners who need to review without editing the source.

The trade-off is clear. Automation can compress repetitive documentation and help generate coordinated outputs, but it can't prove fit by itself. A polished multi-view visual may still contain an impossible seam, an unbalanced sleeve, or a closure that can't be assembled as drawn. Treat generated content as a fast starting point, then apply the same patternmaker's checks you'd use on paper.

Validating Fit With a Test Garment You Trust

The first sample is where a pattern stops being an idea and starts giving you evidence. Treat the toile as a controlled test. Use a fabric close to the production cloth in stretch, drape, and weight, because a stiff woven mock-up will not tell you much about a fluid fabric or a knit.

Set the garment up so it can speak clearly. Mark center front, center back, bust line, waistline, and grainline on the sample. Leave temporary seams anywhere you expect changes, and draw reference lines straight on the fabric. Then fit it on a body that is standing naturally, not posing for the mirror. After that, check ordinary movement. A bodice can look fine with arms down and fail as soon as the wearer reaches, turns, or sits.

Read the direction of the defect

Start by locating the strain or collapse, then read where it points. That keeps you from making broad changes to a local problem.

  • Horizontal drag lines toward the bust apex often mean the pattern needs more length or width across the chest. Add correction where the fabric is asking for it, instead of letting out every seam.
  • Diagonal lines from the shoulder toward the bust apex often indicate a shoulder-width problem or poor upper-bodice balance. Reshaping the armhole alone can shift the symptom and leave the cause in place.
  • Gaping at the neckline usually comes from excess length or neckline shape. Pin out the excess while keeping the center line true, then transfer that exact amount.
  • Back wrinkles near the upper body may come from posture, back width, or balance. Do not assume the center back is the first place to remove fabric.
  • Restricted arm movement can come from the armhole, sleeve cap, shoulder angle, or the fabric itself. Test the related area before choosing the fix.

One experimental study of upper-body contour garments identified seven recurring alteration zones, the shoulder line, side seams, armholes, center back, bust line, bra cut line, and center front (the fit-correction study). Use those zones as a checklist during fitting. Do not treat them as instructions to alter everything you see.

Change one region, then retest

Good fitting is controlled iteration. Photograph the front, side, and back under the same conditions each time. Pin or draw the proposed correction on the toile, remove it, transfer the change to the paper or digital pattern, and make another sample when the adjustment affects balance, pitch, or a major seam. If you change two variables at once, you lose the trail.

New Mexico State University advises comparing body measurements plus ease against the pattern, making alterations before cutting final fabric, and preserving grainline and center-line control during fitting (NMSU's pattern alteration guidance). That order matters in practice. One pinned tuck can shorten an adjoining seam, distort the hang, or change how the sleeve joins the armhole. Check every correction against the neighboring pieces before you call it solved.

Fit is an experiment, not a feeling. Record the defect, the adjustment, and the result.

A repeatable workflow pays off here. In Genpire, the same correction cycle can live in one workspace, from notes on the toile to updated pattern shapes, tech-pinned construction details, and exports for the next handoff. Instead of scattering revisions across photos, paper pieces, and spreadsheets, you can carry one tested decision forward into SVG, PDF, and Excel outputs.

Confidence still is not proof. The same fit-correction study, based on 162 usable responses from home sewers, found that participants generally were not confident in their fit alterations. That lines up with what stalls many first-time brands. They can see that something is off, but they cannot isolate which measurement, line, or seam created it. Once the correction cycle is complete, keep the approved pattern and the reason for each change. If you want another checkpoint before factory submission, professional sample-making services can help verify that the corrected pattern still behaves the way your fit notes say it should.

Grading Across Sizes Without Multiplying Errors

A fitted base size is evidence of one successful relationship between one body and one garment. It isn't proof that the pattern works across the range. Grading uses rule logic, and each body region follows a different logic.

Bust, waist, and hip increments don't automatically equal shoulder, armhole, sleeve, or length increments. A larger size may need more circumference while requiring a different change in shoulder proportion, sleeve width, or armhole depth. Stretch garments introduce another variable because the finished measurement depends on fabric recovery and the intended negative or positive ease.

Grade from a documented base

Before opening the size range, record the approved base size's finished measurements, not only the body measurements. Include the tolerance allowed at key points, the position of balance lines, and the construction assumptions that affect fit.

Then define the grade rules by region:

  • Circumference rules control how bust, waist, and hip distribute through the pattern pieces.
  • Length rules control torso, sleeve, and garment length independently.
  • Shoulder and armhole rules protect upper-body balance instead of expanding every edge.
  • Sleeve rules must remain compatible with the graded armhole and intended mobility.
  • Shape rules preserve dart placement, style lines, and closure alignment.

Industry patternmaking guidance warns that errors compound farther from the base size and recommends checking the smallest and largest sizes, rather than approving only the middle sample (industry guidance on pattern grading). That's where many independent makers discover that a visually elegant grade has created an unwearable sleeve or distorted neckline.

Validate the extremes

Grade outward, then make or pin-fit the smallest and largest planned sizes. Compare the finished measurements to the specification chart and inspect the same balance lines used for the base toile. If the extremes fail, don't patch the issue with a general enlargement. Revisit the regional rule that caused the distortion.

Size and fit are commercial concerns as well as technical ones. A 2025 apparel survey cited in available industry results reported that 53% of sellers named size or fit as the top return driver (the apparel return benchmark). That figure doesn't tell you how your customers will fit, but it does show why one attractive sample isn't enough.

Keep the grading table, assumptions, fit photos, correction notes, and approved files together. Editable multi-size specifications make it easier to revise a rule without losing the earlier evidence. Versioned fit tests also prevent a factory from working from a graded file whose base size was later changed.

A Reusable Checklist for Your Next Pattern

Paste this into your project notes:

  • Measure with intent: record body data, posture, asymmetry, fabric, and ease separately.
  • Draft the block: establish grainline, center lines, balance marks, notches, and net seam shapes.
  • Digitize the decisions: connect editable pattern pieces to technical views, construction details, and specifications.
  • Test the fit: use a comparable fabric, inspect all views, make one controlled correction, and retest.
  • Grade the range: document regional rules, finished measurements, tolerances, and checks at both extremes.

Treat fit as an experiment, not a feeling. Treat grading as a system, not a stretch. When those records are complete, tech packs, RFQs, sample comments, and bulk production become the next stages of the same controlled workflow rather than a factory having to rediscover your decisions.

Genpire brings prompt-based concept creation, editable pattern and specification workflows, tech packs, construction details, and SVG, PDF, and Excel exports into one workspace. Use Genpire to keep your measurements, fit corrections, graded files, and factory comments connected as you move from your first block to production.
